Light Material Buckets for Wheel Loaders, Track Loaders, Toolcarriers and Telehandlers:
Larger Capacity Loading
Dymax Light Material Buckets are specifically designed to match the capabilities of the machine, thus providing an optimum bucket capacity, rugged dependability and overall stability.
Designed around each application, Dymax Light Material Buckets are ideally suited for handling materials such as corn, silage, hay, cottonseed and other light weight commodities. These buckets are made for working with materials under 2000 lbs per cubic yard.

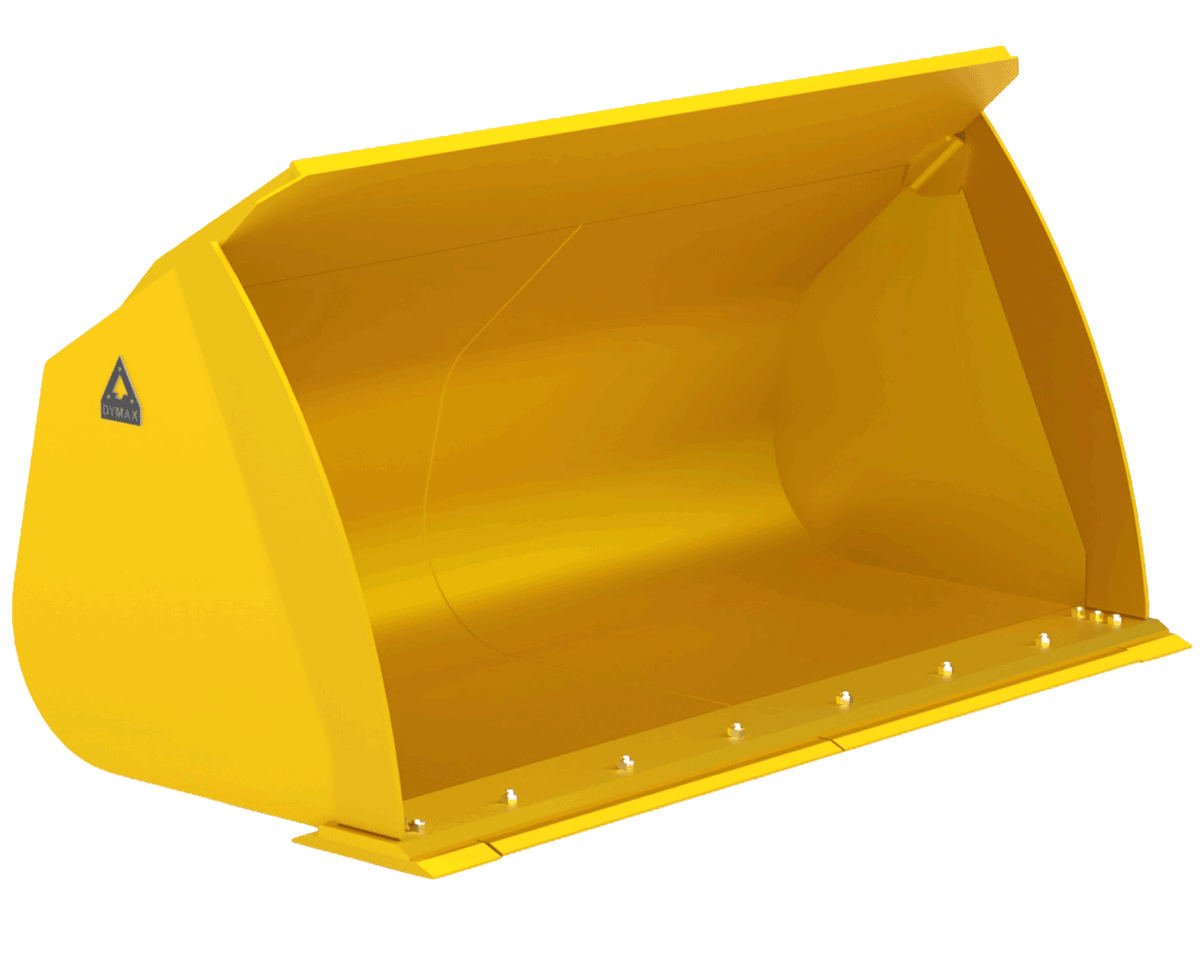

Light Material Buckets
Specifications
| Model Number | Description | Weight (lbs/kg) |
|---|---|---|
| DX-BK-LM-3.00cyd-WL-30 | Light Material Bucket – 3.00 cyd capacity – Wheel Loader – Class 30 | 2,450 lbs/1,111 kg |
| DX-BK-LM-3.00cyd-WL-40 | Light Material Bucket – 3.00 cyd capacity – Wheel Loader – Class 40 | 2,200 lbs/998 kg |
| DX-BK-LM-3.50cyd-WL-40 | Light Material Bucket – 3.50 cyd capacity – Wheel Loader – Class 40 | 2,350 lbs/1,066 kg |
| DX-BK-LM-4.00cyd-WL-40 | Light Material Bucket – 4.00 cyd capacity – Wheel Loader – Class 40 | 2,490 lbs/1,129 kg |
| DX-BK-LM-3.50cyd-WL-50 | Light Material Bucket – 3.50 cyd capacity – Wheel Loader – Class 50 | 2,500 lbs/1,134 kg |
| DX-BK-LM-4.00cyd-WL-50 | Light Material Bucket – 4.00 cyd capacity – Wheel Loader – Class 50 | 2,700 lbs/1,225 kg |
| DX-BK-LM-4.50cyd-WL-50 | Light Material Bucket – 4.50 cyd Capacity – Wheel Loader – Class 50 | 2,930 lbs/1,329 kg |
| DX-BK-LM-5.00cyd-WL-50 | Light Material Bucket – 5.00 cyd capacity – Wheel Loader – Class 50 | 3,100 lbs/1,406 kg |
| DX-BK-LM-5.00cyd-WL-60 | Light Material Bucket – 5.00 cyd capacity – Wheel Loader – Class 60 | 3,300 lbs/1,497 kg |
| DX-BK-LM-5.50cyd-WL-60 | Light Material Bucket – 5.50 cyd capacity – Wheel Loader – Class 60 | 3,550 lbs/1,610 kg |
| DX-BK-LM-6.00cyd-WL-60 | Light Material Bucket – 6.00 cyd capacity – Wheel Loader – Class 60 | 3,800 lbs/1,724 kg |
| DX-BK-LM-6.50cyd-WL-60 | Light Material Bucket – 6.50 cyd capacity – Wheel Loader – Class 60 | 4,000 lbs/1,814 kg |
| DX-BK-LM-6.50cyd-WL-70 | Light Material Bucket – 6.50 cyd capacity – Wheel Loader – Class 70 | 4,450 lbs/2,019 kg |
| DX-BK-LM-7.00cyd-WL-70 | Light Material Bucket – 7.00 cyd capacity – Wheel Loader – Class 70 | 4,600 lbs/2,087 kg |
| DX-BK-LM-7.50cyd-WL-70 | Light Material Bucket – 7.50 cyd capacity – Wheel Loader – Class 70 | 4,975 lbs/2,257 kg |
| DX-BK-LM-8.00cyd-WL-70 | Light Material Bucket – 8.00 cyd capacity – Wheel Loader – Class 70 | 5,300 lbs/2,404 kg |
| DX-BK-LM-9.00cyd-WL-70 | Light Material Bucket – 9.00 cyd capacity – Wheel Loader – Class 70 | 5,890 lbs/2,672 kg |
| DX-BK-LM-9.50cyd-WL-70 | Light Material Bucket – 9.50 cyd capacity – Wheel Loader – Class 70 | 6,000 lbs/2,722 kg |
| DX-BK-LM-8.00cyd-WL-80 | Light Material Bucket – 8.00 cyd capacity – Wheel Loader – Class 80 | 4,700 lbs/2,132 kg |
| DX-BK-LM-9.00cyd-WL-80 | Light Material Bucket – 9.00 cyd capacity – Wheel Loader – Class 80 | 5,700 lbs/2,586 kg |
| DX-BK-LM-10.00cyd-WL-80 | Light Material Bucket – 10.0 cyd capacity – Wheel Loader – Class 80 | 6,000 lbs/2,722 kg |
| DX-BK-LM-8.00cyd-WL-90 | Light Material Bucket – 8.00 cyd capacity – Wheel Loader – Class 90 | 6,800 lbs/3,084 kg |
| DX-BK-LM-9.00cyd-WL-90 | Light Material Bucket – 9.00 cyd capacity – Wheel Loader – Class 90 | 7,500 lbs/3,402 kg |
| DX-BK-LM-9.50cyd-WL-90 | Light Material Bucket – 9.50 cyd capacity – Wheel Loader – Class 90 | 7,800 lbs/3,538 kg |
| DX-BK-LM-10.00cyd-WL-90 | Light Material Bucket – 10.0 cyd capacity – Wheel Loader – Class 90 | 7,980 lbs/3,620 kg |
| DX-BK-LM-11.00cyd-WL-90 | Light Material Bucket – 11.0 cyd capacity – Wheel Loader – Class 90 | 8,120 lbs/3,683 kg |
| DX-BK-LM-12.00cyd-WL-90 | Light Material Bucket – 12.0 cyd capacity – Wheel Loader – Class 90 | 8,400 lbs/3,810 kg |
Specifications are subject to change without notice.
Features
- For Wheel Loaders, Track Loaders, Toolcarriers and Telehandlers.
- Dymax Light Material Buckets work best with materials weighing no more than 2,000 lbs per cubic yard.
- Available in pin-on or equipped with hooks to fit the Dymax coupler system or other popular coupler models.
- Buckets feature flat floor construction and are equipped with bottom wear plates. All side cutters and bottom wear plates are comprised of high tensile steel.
- Can be equipped with OEM bolt on cutting edges or teeth.
- Available with optional spill guard.
- Larger capacity models may feature recessed pockets for proper z-bar clearance.
