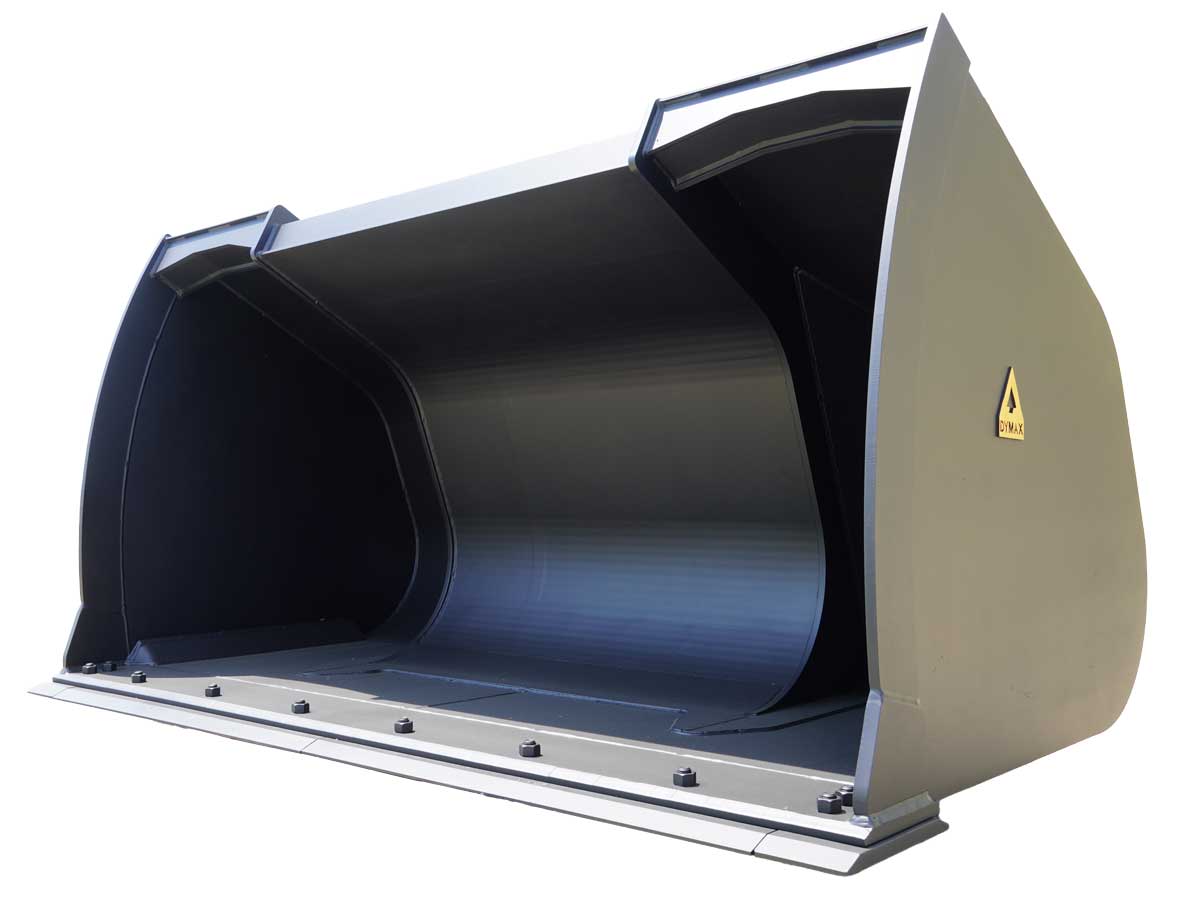

DYMAX BONUS BUCKET – FOR WHEEL LOADERS

For nearly 30 years, Dymax Bonus Buckets have provided effective solutions for the aggregate industry. Now, we offer an optimized design for the agricultural sector, helping high lift loaders achieve greater dump heights and improved feeding performance in dairies, feedyards and other specialized applications. Available in both wide and traditional widths, Bonus Buckets use side pockets to increase capacity without the need for a longer floor, allowing operators to achieve optimal volume and dump height with each pass.

KEY FEATURES

  • Specialized pocket design to meet capacity requirements.
  • High-strength T1 steel radial, convex side cutters and wear plates.
  • Includes replaceable bolt-on cutting edges.
  • Rear weld-on wear plates.

OPTIONS

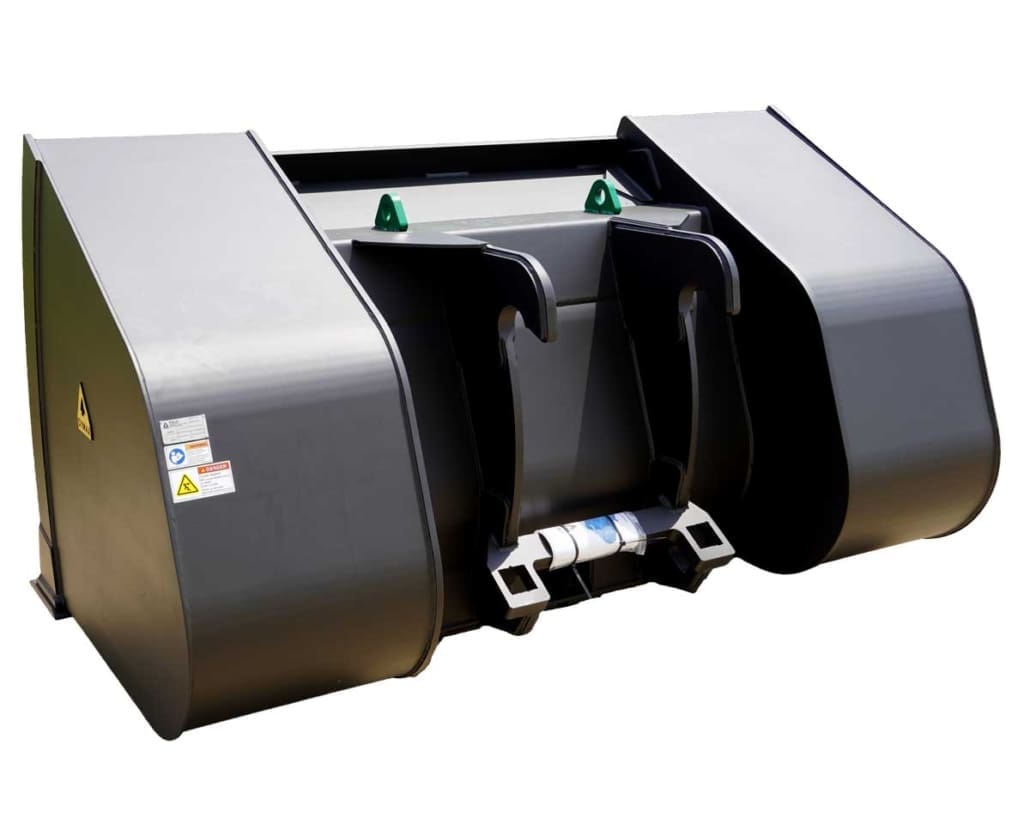

  • Pin-on lugging
  • Quick coupler hooks
  • Custom widths to better meet job requirements
  • Rubber edges for wet distillers grain
  • Rear bolt-on wear pads

SPECIAL APPLICATIONS

More capacity, fewer passes.

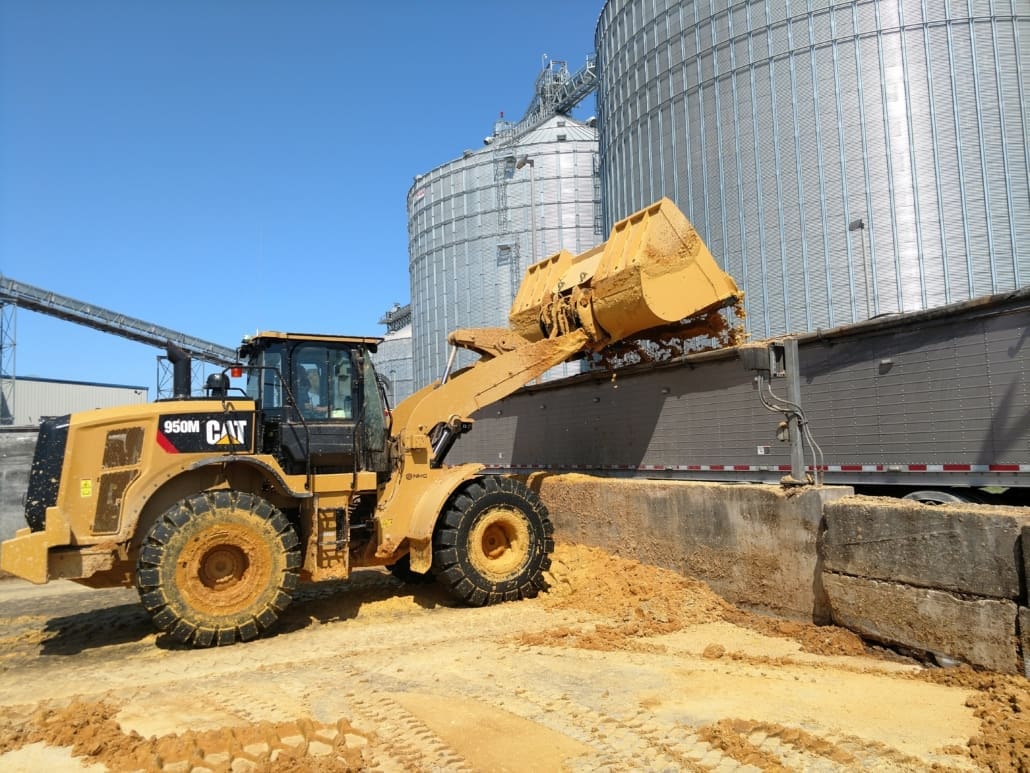

Recessed pockets add volume within the same width and floor length — enough to fill a grain semi in four passes.

Dump height without losing capacity.

A shorter bucket floor keeps the edge visible while dumping into mixers or trucks. Ideal for high-lift machines.

Handling wet distillers grain

Compared to rollout buckets, bonus buckets can load more volume and hold up better in sticky, abrasive WDG. There’s very little maintenance needed.

SPECIFICATIONS

Model
Description
Weight (lbs)
DX-BK-LMBS-3.50cyd-WL-50
Bucket-Light Material Bonus-3.50 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 50
STANDARD FEATURES:
– Replaceable bolt-on cutting edges
– Bottom T1 wear plates with rear wear pads
– High-strength radial-convex side cutters
– Recessed pocket design
WEIGHT: 3660 lbs
DX-BK-LMBS-8.00cyd-WL-70
Bucket-Light Material Bonus-8.00 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 70
STANDARD FEATURES:
– Recessed hook design for increased dump height
– Rear bolt-on rubber wear pads drilled to Cat pattern
– Setco solid rubber bolt-on cutting edges
– Radial side cutters
– 156.00 inches wide
WEIGHT: 6000 lbs
DX-BK-LMBS-16.00cyd-WL-90
Bucket-Light Material Bonus-16.00 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 90
STANDARD FEATURES:
– Replaceable bolt-on cutting edges
– Bottom T1 wear plates with rear wear pads
– High-strength radial-convex side cutters
– Recessed pocket design
– 178.00 inches wide

Design and specifications are subject to change without notice. Contact Dymax Sales for custom designs.

GALLERY

PreviousNext
12345678

COMPARE DYMAX LIGHT MATERIAL BUCKETS

WHAT ARE YOU LOADING?

BUCKETBUILT FORWHAT SETS IT APARTCAPACITY (SAE HEAPED)
Light Material BucketGeneral light material — corn, silage, hay, cottonseed, snowThe baseline LM bucket; widest range of sizes and edge patterns.0.75–14 cyd
Light Material PlusCorn, silage, and hay in high-hour operations~20% more durable than the standard LM bucket.5.5–8 cyd
Feedyard Light Material BucketHigh-hour cattle feedingReinforced for repeated dump-shaking; wedge floor.4.0–10.5 cyd
Bonus BucketMore capacity when width or dump height is limitedRecessed pockets add capacity without a longer floor — edge stays in view while dumping.3.5–8 cyd
Extra Wide Corn & Grain BucketEven-loading semi-trailers with corn and grainExtra-wide profile fills trailers in fewer passes.6.5–12 cyd
Fertilizer BucketPotash and dry fertilizerLong floor fills to 85–90%; abrasion resistant, less spillage4.6–9 cyd
Sugar Beet BucketHigh-volume sugar beet handlingHalf-arrow edge reduces beet damage; screen for visibility8.5–9 cyd
