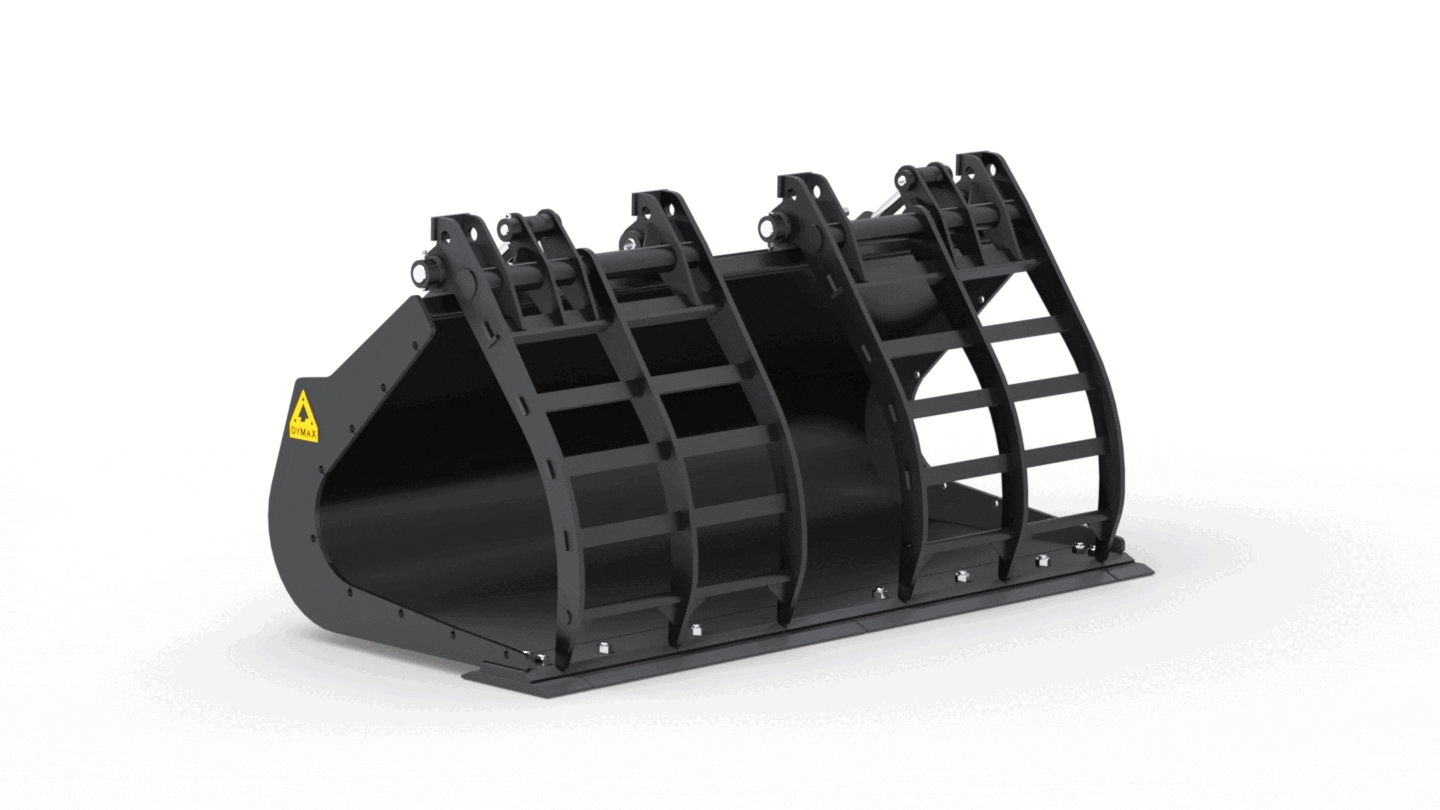

Scrap Handling Grapple Bucket
For Backhoe Loaders and Wheel Loaders

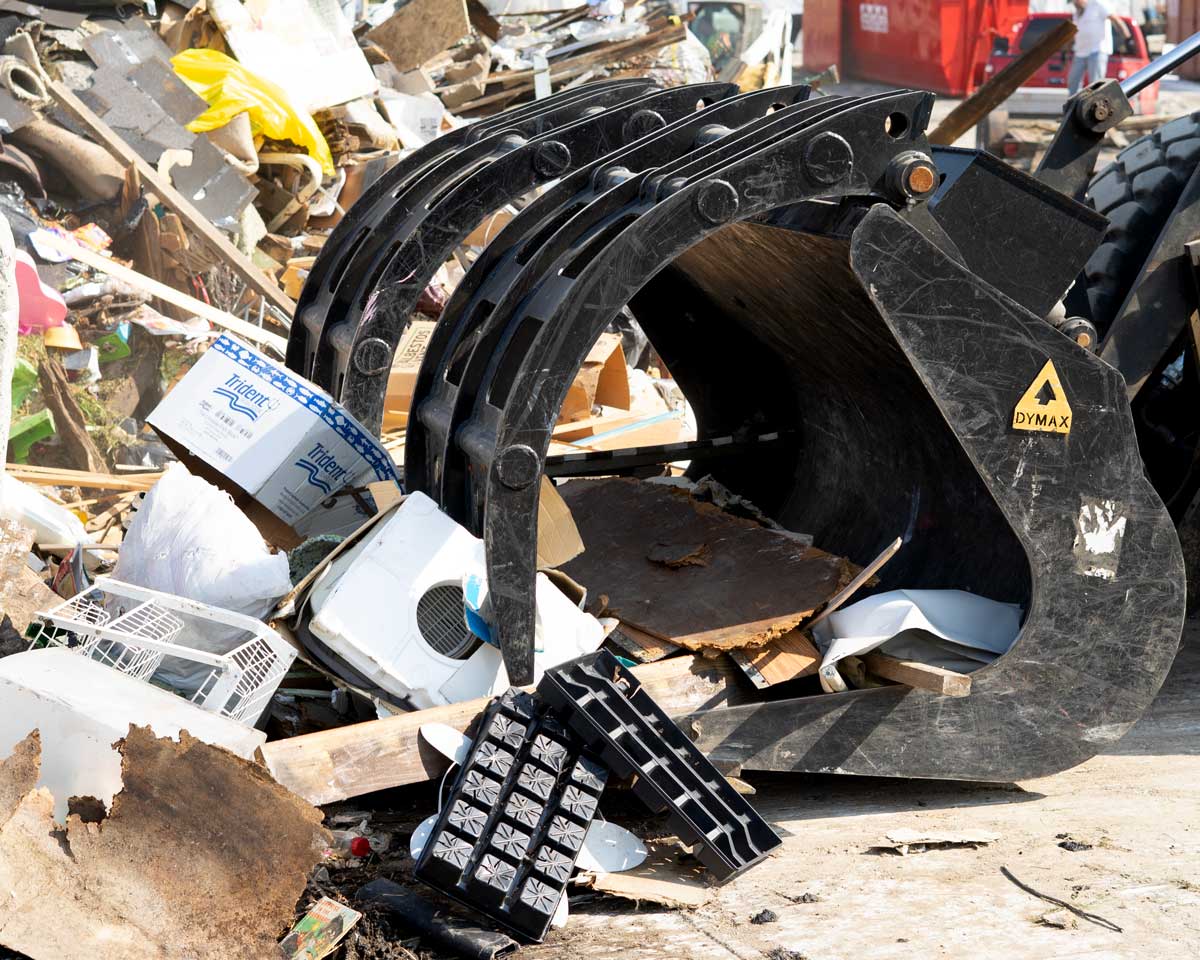

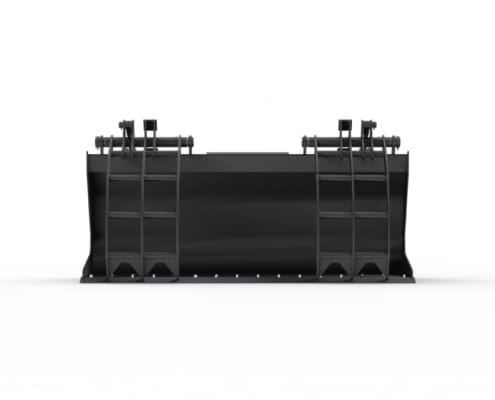

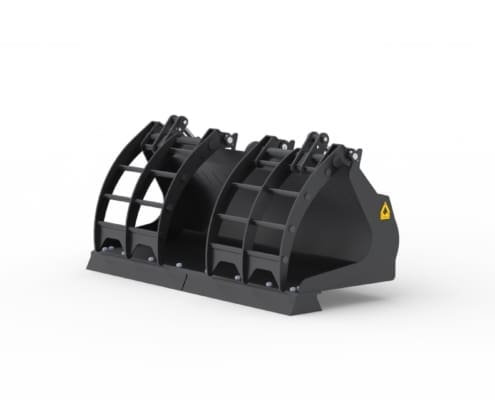

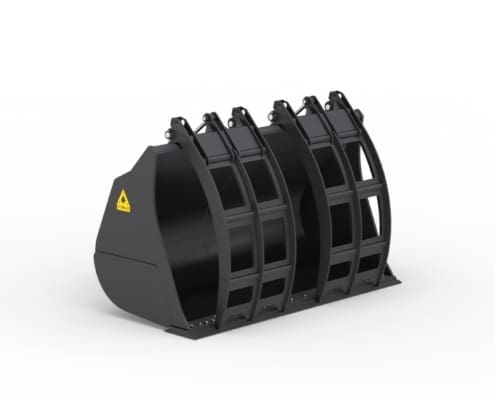

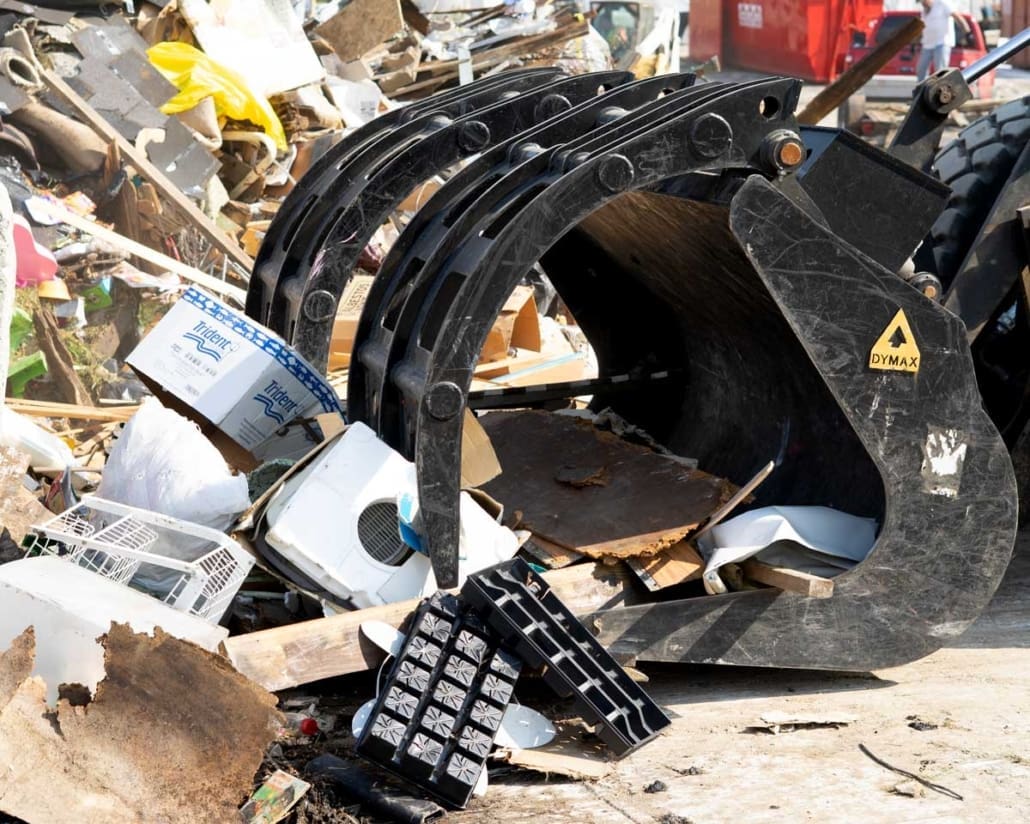

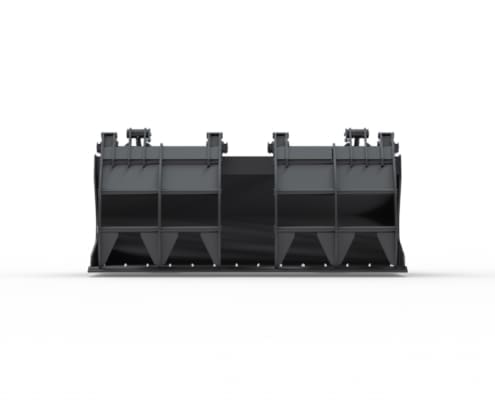

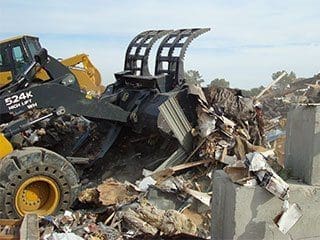

Grab larger loads! Dymax Scrap Handling Grapple Buckets feature two piece, independent top clamps with solid steel tine construction. Each grapple bucket is powered by two large cylinders which firmly grip and hold awkward, hard-to-load materials. Grapple arms retract behind the leading cutting edge for loading against objects such as concrete walls or large piles of rubble.

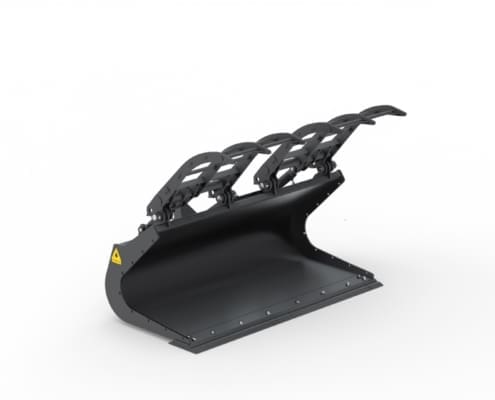

The design of the Dymax Scrap Handling Grapple Bucket ensures that the top clamp opening is wide enough to allow conventional loading of the bucket when necessary. The flat floor enables the operator to utilize the bucket in a “skimming” mode. Grapples feature retractable stops. Crossport relief valves are used on hydraulic cylinders to protect grapples from pressure spiking.
Applications
- Transfer stations, waste handling, recycling
Key Features
- Ideal for handling brush, logs, debris, refuse and in harsh applications such as moving concrete rubble.

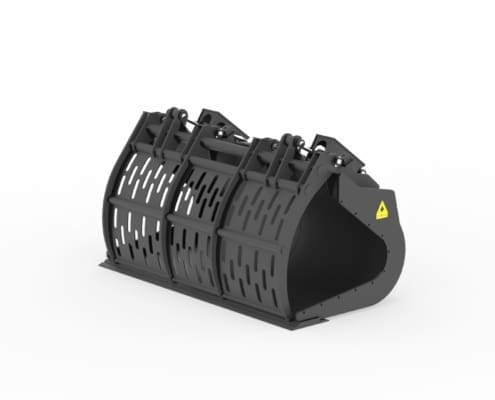

- Standard grapple buckets feature solid style side plates. Optional open profile and bolt-on side plates are available.
- Can be equipped with a full guard package which includes cylinder, hose and fitting guards.
- Can be equipped to accept OEM bolt on cutting edges or solid rubber cutting edges for transfer station work.
- Available for a variety of machines, in a variety of capacities and widths.
Backhoe Loader Models & Specifications
| Model Code Description Width Weight |
| DX-BK-GL-1.00cyd-BL-10
Bucket-Grapple-1.00 cyd capacity-Backhoe Loader-Class 10 STANDARD FEATURES: Dymax 0.75 x 8.00 bolt-on cutting edges, hydraulic cushion valve package with relief, independent standard grapple arrangement with reinforced tips, rear weld-on wear pads, open side plate design; drilled to accept bolt-on side plates, 3.00 x 8.00 hydraulic cylinders, replaceable bushings in pivot and cylinder ends WIDTH: 88 inches WEIGHT: 1850 lbs |
| DX-BK-GL-1.50cyd-BL-10
Bucket-Grapple-1.50 cyd capacity-Backhoe Loader-Class 10 STANDARD FEATURES: Dymax 0.75 x 8.00 bolt-on cutting edges, hydraulic cushion valve package with relief, independent standard grapple arrangement with reinforced tip, rear weld-on wear pads, open side plate design; drilled to accept bolt-on side plates, 3.00 x 8.00 hydraulic cylinders, replaceable bushings in pivot and cylinder ends. WIDTH: 96 inches WEIGHT: 2200 lbs |
| DX-BK-GL-1.50cyd-BL-20
Bucket-Grapple-1.50 cyd capacity-Backhoe Loader-Class 20 STANDARD FEATURES: Dymax 0.75 x 8.00 bolt-on cutting edges, hydraulic cushion valve package with relief, independent standard grapple arrangement with reinforced tips, rear weld-on wear pads, open side plate design; drilled to accept bolt-on side plates, 3.00 x 8.00 hydraulic cylinders, replaceable bushings in pivot and cylinder ends WIDTH: 96 inches WEIGHT: 2200 lbs |
| DX-BK-GL-2.00cyd-BL-20
Bucket-Grapple-2.00 cyd capacity-Backhoe Loader-Class 20 STANDARD FEATURES: Dymax 0.75 x 8.00 bolt-on cutting edges, hydraulic cushion valve package with relief, independent standard grapple arrangement with reinforced tips, rear weld-on wear pads, open side plate design; drilled to accept bolt-on side plates, 3.00 x 8.00 hydraulic cylinders, replaceable bushings in pivot and cylinder ends. WIDTH: 96 inches WEIGHT: 2500 lbs |
| Design and specifications are subject to change without notice. Please contact Dymax sales for custom solutions 1-800-530-5407. |

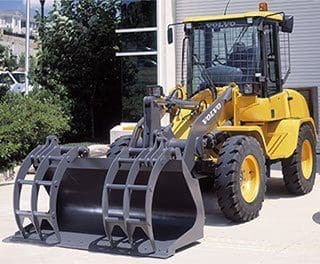

Wheel Loader Models & Specifications
| Model Code Description Width Weight |
| DX-BK-GL-1.00cyd-WL-10
Bucket-Grapple-1.00 cyd capacity-Wheel Loader-Class 10 STANDARD FEATURES: Dymax 0.75 x 8.00 bolt-on cutting edges, hydraulic cushion valve package with relief, independent standard grapple arrangement with reinforced tips, rear weld-on wear pads, open side plate design; drilled to accept bolt-on side plates, 3.00 x 8.00 hydraulic cylinders, replaceable bushings in pivot and cylinder ends. WIDTH: 71 inches (subject to machine) WEIGHT: 1700 lbs |
| DX-BK-GL-1.50cyd-WL-20
Bucket-Grapple-1.50 cyd capacity-Wheel Loader-Class 20 STANDARD FEATURES: Dymax 0.75 x 8.00 bolt-on cutting edges, hydraulic cushion valve package with relief, independent standard grapple arrangement with reinforced tips, rear weld-on wear pads, open side plate design; drilled to accept bolt-on side plates, 3.00 x 8.00 hydraulic cylinders, replaceable bushings in pivot and cylinder ends. WIDTH: 88 inches (subject to machine) WEIGHT: 1750 lbs |
| DX-BK-GL-1.75cyd-WL-20
Bucket-Grapple-1.75 cyd capacity-Wheel Loader-Class 20 STANDARD FEATURES: Dymax 0.75 x 8.00 bolt-on cutting edges,hydraulic cushion valve package with relief, independent standard grapple arrangement with reinforced tips, rear weld-on wear pads, open side plate design; drilled to accept bolt-on side plates, 3.00 x 8.00 hydraulic cylinders, replaceable bushings in pivot and cylinder ends. WIDTH: 88 inches (subject to machine) WEIGHT: 1850 lbs |
| DX-BK-GL-1.75cyd-WL-30
Bucket-Grapple-1.75 cyd capacity-Wheel Loader Class 30 STANDARD FEATURES: Dymax 0.75 x 8.00 bolt-on cutting edges, hydraulic cushion valve package with relief, independent standard grapple arrangement with reinforced tips, rear weld-on wear pads, open side plate design; drilled to accept bolt-on side plates, 3.00 x 8.00 hydraulic cylinders, replaceable bushings in pivot and cylinder ends. WIDTH: 96 inches (subject to machine) WEIGHT: 2300 lbs |
| DX-BK-GL-2.00cyd-WL-40
Bucket-Grapple-2.00 cyd capacity-Wheel Loader-Class 40 STANDARD FEATURES: OEM replaceable bolt-on cutting edges, hydraulic cushion valve package with relief, independent standard grapple arrangement with reinforced tips, rear weld-on wear pads, open side plate design; drilled to accept bolt-on side plates, 3.00 x 8.00 hydraulic cylinders, replaceable bushings in pivot and cylinder ends. WIDTH RANGE: 96-100 inches (subject to machine) WEIGHT: 3000 lbs |
| DX-BK-GL-2.50cyd-WL-40
Bucket-Grapple-2.50 cyd capacity-Wheel Loader-Class 40 STANDARD FEATURES: OEM replaceable bolt-on cutting edge, hydraulic cushion valve package with relief, independent standard grapple arrangement with reinforced tips, rear weld-on wear pads, open side plate design; drilled to accept bolt-on side plates, 3.00 x 8.00 hydraulic cylinders, replaceable bushings in pivot and cylinder ends. WIDTH RANGE: 100-105 inches (subject to machine) WEIGHT: 3500 lbs |
| DX-BK-GL-3.00cyd-WL-50
Bucket-Grapple-3.00 cyd capacity-Wheel Loader-Class 50 STANDARD FEATURES: OEM replaceable bolt-on cutting edge, hydraulic cushion valve package with relief, independent standard grapple arrangement with reinforced tips, rear weld-on wear pads, open side plate design; drilled to accept bolt-on side plates, 3.00 x 8.00 hydraulic cylinders, replaceable bushings in pivot and cylinder ends. WIDTH RANGE: 105-108 inches (subject to machine) WEIGHT: 3800 lbs |
| DX-BK-GL-3.50cyd-WL-50
Bucket-Grapple-3.50 cyd capacity-Wheel Loader-Class 50 STANDARD FEATURES: OEM replaceable bolt-on cutting edge, hydraulic cushion valve package with relief, independent standard grapple arrangement with reinforced tips, rear weld-on wear pads, open side plate design; drilled to accept bolt-on side plates, 3.00 x 8.00 hydraulic cylinders, replaceable bushings in pivot and cylinder ends. WIDTH RANGE: 105-108 inches (subject to machine) WEIGHT: 4400 lbs |
| DX-BK-GL-3.00cyd-WL-60
Bucket-Grapple-3.00 cyd capacity-Wheel Loader-Class 60 STANDARD FEATURES: OEM replaceable bolt-on cutting edge, hydraulic cushion valve package with relief, independent standard grapple arrangement with reinforced tips, rear weld-on wear pads, open side plate design; drilled to accept bolt-on side plates, 3.50 x 8.00 hydraulic cylinders, replaceable bushings in pivot and cylinder ends. WIDTH RANGE: 103-106 inches (subject to machine) WEIGHT: 3800 lbs |
| DX-BK-GL-3.25cyd-WL-60
Bucket-Grapple-3.25 cyd capacity-Wheel Loader-Class 60 STANDARD FEATURES: OEM replaceable bolt-on cutting edge, hydraulic cushion valve package with relief, independent standard grapple arrangement with reinforced tips, rear weld-on wear pads, open side plate design; drilled to accept bolt-on side plates, 3.50 x 8.00 hydraulic cylinders, replaceable bushings in pivot and cylinder ends. WIDTH RANGE: 105-108 inches (subject to machine) WEIGHT: 4200 lbs |
| DX-BK-GL-3.50cyd-WL-60
Bucket-Grapple-3.50 cyd capacity-Wheel Loader-Class 60 STANDARD FEATURES: OEM replaceable bolt-on cutting edge, hydraulic cushion valve package with relief, independent standard grapple arrangement with reinforced tips, rear weld-on wear pads, open side plate design; drilled to accept bolt-on side plates, 3.50 x 8.00 hydraulic cylinders, replaceable bushings in pivot and cylinder ends. WIDTH RANGE: 105-108 inches (subject to machine) WEIGHT: 4400 lbs |
| DX-BK-GL-4.00cyd-WL-60
Bucket-Grapple-4.00 cyd capacity-Wheel Loader-Class 60 STANDARD FEATURES: OEM replaceable bolt-on cutting edge, hydraulic cushion valve package with relief, independent standard grapple arrangement with reinforced tips, rear weld-on wear pads, open side plate design; drilled to accept bolt-on side plates, 3.50 x 8.00 hydraulic cylinders, replaceable bushings in pivot and cylinder ends. WIDTH RANGE: 108-115 inches (subject to machine) WEIGHT: 4800 lbs |
| DX-BK-GL-4.50cyd-WL-60
Bucket-Grapple-4.50 cyd Capacity-Wheel Loader-Class 60 STANDARD FEATURES: OEM replaceable bolt-on cutting edge, hydraulic cushion valve package with relief, independent standard grapple arrangement with reinforced tips, rear weld-on wear pads, open side plate design; drilled to accept bolt-on side plates, 3.50 x 8.00 hydraulic cylinders, replaceable bushings in pivot and cylinder ends. WIDTH RANGE: 108-115 inches (subject to machine) WEIGHT: 5300 lbs |
| DX-BK-GL-4.00cyd-WL-70
Bucket-Grapple-4.00 cyd capacity-Wheel Loader-Class 70 STANDARD FEATURES: OEM replaceable bolt-on cutting edge, hydraulic cushion valve package with relief, independent standard grapple arrangement with reinforced tips, rear weld-on wear pads, open side plate design; drilled to accept bolt-on side plates, 3.50 x 12.00 hydraulic cylinders, replaceable bushings in pivot and cylinder ends. WIDTH RANGE: 113-120 inches (subject to machine) WEIGHT: 5000 lbs |
| DX-BK-GL-4.50cyd-WL-70
Bucket-Grapple-4.50 cyd Capacity-Wheel Loader-Class 70 STANDARD FEATURES: OEM replaceable bolt-on cutting edge, hydraulic cushion valve package with relief, independent standard grapple arrangement with reinforced tips, rear bolt-on wear pads 1.38″ thick DY29157, wedge floor design, open side plate design; drilled to accept bolt-on side plates, 3.50 x 12.00 hydraulic cylinders, replaceable bushings in pivot and cylinder ends. WIDTH RANGE: 113-120 inches (subject to machine) WEIGHT: 5300 lbs |
| DX-BK-GL-5.00cyd-WL-70
Bucket-Grapple-5.00 cyd capacity-Wheel Loader-Class 70 STANDARD FEATURES: OEM replaceable bolt-on cutting edge, hydraulic cushion valve package with relief, independent standard grapple arrangement with reinforced tips, rear weld-on wear pads, open side plate design; drilled to accept bolt-on side plates, 3.50 x 12.00 hydraulic cylinders, replaceable bushings in pivot and cylinder ends. WIDTH RANGE: 113-120 inches (subject to machine) WEIGHT: 5600 lbs |
| DX-BK-GL-5.50cyd-WL-80
Bucket-Grapple-5.50 cyd capacity-Wheel Loader-Class 80 STANDARD FEATURES: OEM replaceable bolt-on cutting edge, hydraulic cushion valve package with relief, independent standard grapple arrangement with reinforced tips, rear weld-on wear pad, open side plate design; drilled to accept bolt-on side plates, 3.50 x 12.00 hydraulic cylinders, replaceable bushings in pivot and cylinder ends. WIDTH RANGE: 126-132 inches (subject to machine) WEIGHT: 6000 lbs |
| DX-BK-GL-6.00cyd-WL-80
Bucket-Grapple-6.00 cyd capacity-Wheel Loader-Class 80 STANDARD FEATURES: OEM replaceable bolt-on cutting edge, hydraulic cushion valve package with relief, independent standard grapple arrangement with reinforced tips, rear bolt-on wear pads 1.38″ thick DY29157, open side plate design; drilled to accept bolt-on side plates, 3.50 x 12.00 hydraulic cylinders, replaceable bushings in pivot and cylinder ends. WIDTH RANGE: 120-128 inches (subject to machine) WEIGHT: 6300 lbs |
| DX-BK-GL-6.50cyd-WL-80
Bucket-Grapple-6.50 cyd capacity-Wheel Loader-Class 80 STANDARD FEATURES: OEM replaceable bolt-on cutting edge, hydraulic cushion valve package with relief, independent standard grapple arrangement with reinforced tips, rear weld-on wear pads, open side plate design; drilled to accept bolt-on side plates, 3.50 x 12.00 hydraulic cylinders, replaceable bushings in pivot and cylinder ends. WIDTH RANGE: 120-128 inches (subject to machine) WEIGHT: 6600 lbs |
| DX-BK-GL-7.00cyd-WL-80
Bucket-Grapple-7.00 cyd capacity-Wheel Loader-Class 80 STANDARD FEATURES: OEM replaceable bolt-on cutting edge, hydraulic cushion valve package with relief, independent standard grapple arrangement with reinforced tips, rear weld-on wear pads, open side plate design; drilled to accept bolt-on side plates, 4.00 x 16.00 hydraulic cylinders, replaceable bushings in pivot and cylinder ends. WIDTH RANGE: 126-132 inches (subject to machine) WEIGHT: 6900 lbs |
| DX-BK-GL-7.50cyd-WL-80
Bucket-Grapple-7.50 cyd capacity-Wheel Loader-Class 80 STANDARD FEATURES: Heavy duty design, hydraulic cushion valve package with relief, independent standard grapple arrangement with reinforced tips, rear bolt-on wear pads 1.38″ thick, open side plate design; drilled to accept bolt-on side plates, 4.00 x 16.00 hydraulic cylinders, replaceable bushings in pivot and cylinder ends. WIDTH RANGE: 126-132 inches (subject to machine) WEIGHT: 9120 lbs |
| DX-BK-GL-8.70cyd-WL-90
Bucket-Grapple-8.70 cyd capacity-Wheel Loader-Class 90 STANDARD FEATURES: Equipped with Cat bolt-on cutting edges. NOTE: 141.5 inches wide setup with DY133551 base edge setup with Caterpillar 4-piece bolt-on cutting edges. Lower side bar protectors installed, full grapple clamp setup with HD 4.00×20.00 hydraulic cylinder, wedge floor design with rear bolt-on wear pads, counterbalance valve and relief included. Bucket design similar to 6923D1 with added full width top clamp. All cylinders are matched to 6673D3 style rake products. WEIGHT: 12000 lbs |
| DX-BK-GL-9.00cyd-WL-90
Bucket-Grapple-9.00 cyd capacity-Wheel Loader-Class 90 STANDARD FEATURES: OEM replaceable bolt-on cutting edge, hydraulic cushion valve package with relief, independent standard grapple arrangement with reinforced tips, rear bolt-on wear pads 1.38″ thick, open side plate design; drilled to accept bolt-on side plates, 4.00 x 16.00 hydraulic cylinders, replaceable bushings in pivot and cylinder ends. WIDTH RANGE: 136-144 inches (subject to machine) WEIGHT: 12,500 lbs |
| Design and specifications are subject to change without notice. Please contact Dymax sales for custom solutions 1-800-530-5407. |
Hydraulic Requirements
| BACKHOE LOADER MODELS: DX-BK-GL-1.00cyd-BL-10, DX-BK-GL-1.50cyd-BL-10, DX-BK-GL-1.50cyd-BL-20, DX-BK-GL-2.00cyd-BL-20
WHEEL LOADER MODELS: DX-BK-GL-1.00cyd-WL-10, DX-BK-GL-1.50cyd-WL-20, DX-BK-GL-1.75cyd-WL-20, DX-BK-GL-1.75cyd-WL-30, DX-BK-GL-2.00cyd-WL-40, DX-BK-GL-2.50cyd-WL-40 Your machine will require 3rd function auxiliary lines. CIRCUIT 1 – Clamp Operation Type – Two way Flow/Pressure – GPM (min/max) 15-20, PSI (max) 3,000 NOT SUPPLIED: Does not include jumper hoses to machine lines or quick disconnects. |
|||
| WHEEL LOADER MODELS: DX-BK-GL-3.00cyd-WL-50, DX-BK-GL-3.00cyd-WL-60, DX-BK-GL-3.25cyd-WL-60, DX-BK-GL-3.50cyd-WL-50, DX-BK-GL-3.50cyd-WL-60, DX-BK-GL-4.00cyd-WL-60, DX-BK-GL-4.00cyd-WL-70, DX-BK-GL-4.50cyd-WL-60, DX-BK-GL-4.50cyd-WL-70, DX-BK-GL-5.00cyd-WL-70, DX-BK-GL-5.50cyd-WL-80, DX-BK-GL-6.00cyd-WL-80, DX-BK-GL-6.50cyd-WL-80, DX-BK-GL-7.00cyd-WL-80, DX-BK-GL-7.50cyd-WL-80, 0, DX-BK-GL-7.00cyd-WL-80, DX-BK-GL-7.50cyd-WL-80, DX-BK-GL-8.70cyd-WL-90, DX-BK-GL-9.00cyd-WL-90
Your machine will require 3rd function auxiliary lines. CIRCUIT 1 – Clamp Operation Type – Two way Flow/Pressure – GPM (min/max) 15-25, PSI (max) 3,000 NOT SUPPLIED: Does not include jumper hoses to machine lines or quick disconnects. |
