Side Dump Loader Buckets

for Wheel Loaders, Track Loaders, Toolcarriers, and Backhoe Loaders

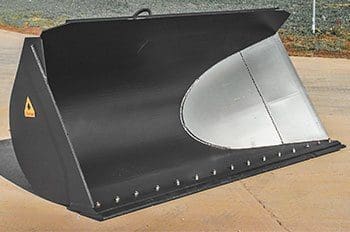

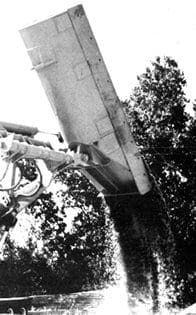

Dymax Side Dump Buckets are ideal for tunnel construction, building levees, filling trenches, and demolition of asphalt roadways. They are designed to work in sand, gravel, loose dirt, and rock. Perfect for operating in congested work sites and hard-to-maneuver work areas, this unique bucket can also dump forward for use as a conventional bucket.

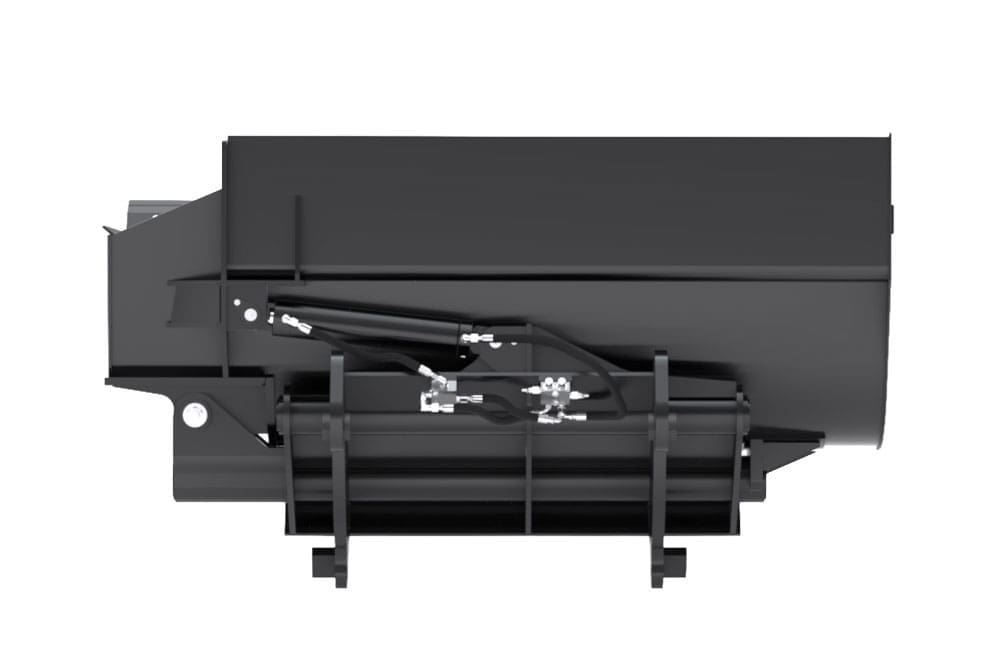

Dymax Side Dump Buckets incorporate both a hydraulic lock valve and a mechanical lock for safety. The hydraulic cylinder is well protected from material that may fall over the spill plate. Features include an open carriage that inhibits material compaction and a lock valve to prevent the bucket from free falling when dumping.

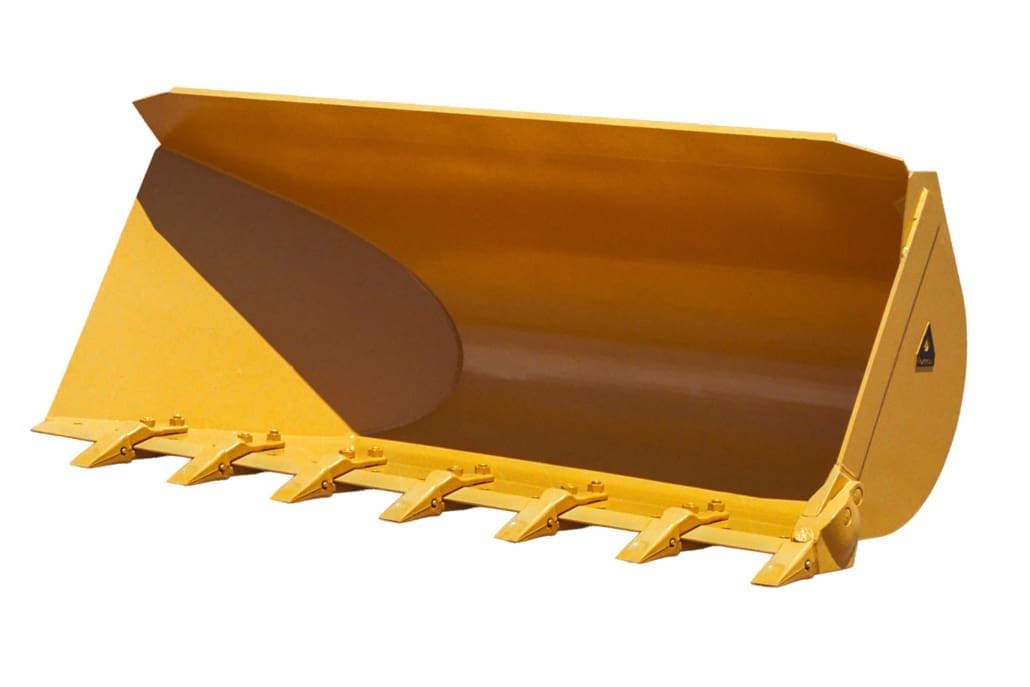

Standard Dymax Side Dump Buckets feature a straight edge drilled to accept OEM bolt-on cutting edges or bolt-on teeth. Additional options such rock racks and V-type cutting edges for heavy duty rock loading are available upon request.

MODEL CODE
DESCRIPTION
FEATURES
WEIGHT (LBS)
Dump Side Loader Size (Operating Weights)
DX-BK-SDL-1.00cyd-BL-10

Bucket – Side Dump Left – 1.00 cyd capacity – Backhoe Loader – Class 10

STANDARD FEATURES:

  • Replaceable bolt on cutting edge
  • Left side dump action
  • 88 inches wide

WEIGHT: 1600 lbs

Left Backhoe
DX-BK-SDL-1.25cyd-BL-20

Bucket – Side Dump Left – 1.25 cyd capacity – Backhoe Loader – Class 20

STANDARD FEATURES:

  • Replaceable bolt on cutting edge
  • Left side dump action
  • 88 inches wide

WEIGHT: 1780 lbs

Left Backhoe
DX-BK-SDL-1.00cyd-WL-10

Bucket – Side Dump Left – 1.00 cyd capacity – Wheel Loader – Class 10

STANDARD FEATURES:

  • Replaceable bolt on cutting edge
  • Left side dump action
  • 80 inches wide

WEIGHT: 1600 lbs

50-75HP Operating Wt

9,000-11,000

DX-BK-SDL-1.12cyd-WL-20

Bucket – Side Dump Left – 1.12 cyd capacity – Wheel Loader – Class 20

STANDARD FEATURES:

  • Replaceable bolt on cutting edge
  • Left side dump action
  • 82 inches wide

WEIGHT: 1650 lbs

Left Operating Wt

12,000-16,500

DX-BK-SDL-1.38cyd-WL-20

Bucket – Side Dump Left – 1.38 cyd capacity – Wheel Loader – Class 20

STANDARD FEATURES:

  • Replaceable bolt-on cutting edge
  • Left side dump action
  • 82 inches wide

Weight: 1850 lbs

Left Operating Wt

12,000-16,500

DX-BK-SDL-1.50cyd-WL-30

Bucket – Side Dump Left  1.50 cyd capacity – Wheel Loader – Class 30

STANDARD FEATURES:

  • Replaceable bolt on cutting edge
  • Left side dump action
  • 96 inches wide

WEIGHT: 2300 lbs

Left Operating Wt

17,000-20,000

DX-BK-SDL-1.38cyd-WL-30

Bucket – Side Dump Left – 1.38 cyd capacity – Wheel Loader – Class 30

STANDARD FEATURES:

  • Replaceable bolt on cutting edge
  • Left side dump action
  • 92 inches wide

WEIGHT: 1970 lbs

Left Operating Wt

17,000-20,000

DX-BK-SDL-1.50cyd-WL-40

Bucket – Side Dump Left – 1.50 cyd capacity – Wheel Loader – Class 40

STANDARD FEATURES:

  • Replaceable bolt on cutting edge
  • Left side dump action
  • 100 inches wide

WEIGHT: 2450 lbs

Left Operating Wt

20,000-24,000

DX-BK-SDL-1.75cyd-WL-40

Bucket – Side Dump Left – 1.75 cyd capacity – Wheel Loader – Class 40

STANDARD FEATURES:

  • Replaceable bolt on cutting edge
  • Left side dump action
  • 100 inches wide

WEIGHT: 3200 lbs

Left Operating Wt

20,000-24,000

DX-BK-SDR-1.75cyd-WL-40

Bucket-Side Dump Right-1.75 cyd capacity-Wheel Loader-Class 40

STANDARD FEATURES:

  • Replaceable bolt on cutting edge
  • Right Side Dump design
  • 100 inches wide

WEIGHT: 3050 lbs

Right Operating Wt

20,000-24,000

DX-BK-SDL-1.75cyd-WL-50

Bucket – Side Dump Left – 1.75 cyd capacity – Wheel Loader – Class 50

STANDARD FEATURES:

  • Replaceable bolt on cutting edge
  • Left side dump action
  • 100 inches wide

WEIGHT: 3200 lbs

Left Operating Wt

26,000-31,000

DX-BK-SDL-2.25cyd-WL-50

Bucket-Side Dump Left-2.25 cyd capacity-Wheel Loader-Class 50

STANDARD FEATURES:

  • Replaceable bolt on cutting edge
  • Left side dump action
  • 100 inches wide

WEIGHT: 4300 lbs

Left Operating Wt

26,000-31,000

DX-BK-SDL-2.50cyd-WL-50

Bucket-Side Dump Left -2.50 cyd capacity-Wheel Loader-Class 50

STANDARD FEATURES:

  • Replaceable bolt on cutting edge
  • Left side dump action
  • 108 inches wide

WEIGHT: 4800 lbs

Left Operating Wt

26,000-31,000

DX-BK-SDL-2.75cyd-WL-60

Bucket – Side Dump Left – 2.75 cyd capacity – Wheel Loader – Class 60

STANDARD FEATURES:

  • Replaceable bolt on cutting edge
  • Left side dump action
  • 110 inches wide

WEIGHT: 4400 lbs

Left Operating Wt

32,000-38,000

DX-BK-SDL-3.00cyd-WL-70

Bucket – Side Dump Left – 3.00 cyd capacity – Wheel Loader – Class 70

STANDARD FEATURES:

  • Replaceable bolt on cutting edge
  • Left side dump action
  • 132 inches wide

WEIGHT: 4640 lbs

Left Operating Wt

40,000-47,500

DX-BK-SDL-3.75cyd-WL-70

Bucket-Side Dump Left-3.75 cyd capacity-Wheel Loader-Class 70

STANDARD FEATURES:

  • Replaceable bolt on cutting edge
  • Left side dump action
  • 132 inches wide

WEIGHT: 4850 lbs

Left Operating Wt

40,000-47,500

DX-BK-SDL-4.75cyd-WL-80

Bucket-Side Dump Left-4.75 cyd capacity-Wheel Loader-Class 80

STANDARD FEATURES:

  • Replaceable bolt on cutting edge
  • Left side dump action
  • 144 inches wide

WEIGHT: 6000 lbs

Left Operating Wt

48,000-56,000

DX-BK-SDL-4.00cyd-WL-80

Bucket-Side Dump Left-4.00 cyd capacity-Wheel Loader-Class 80

STANDARD FEATURES:

  • Replaceable bolt on cutting edge
  • Left side dump action

WEIGHT: 5400 lbs

Left Operating Wt

48,000-56,000

Design and specifications are subject to change without notice.
