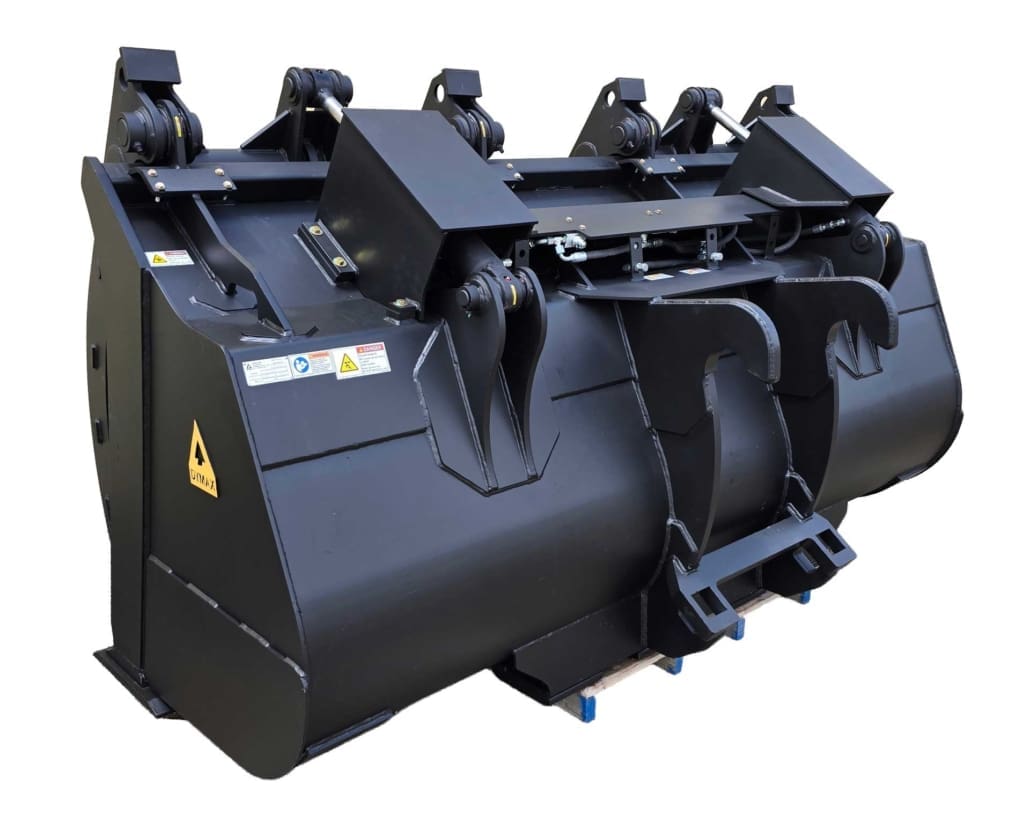

DEMOLITION GRAPPLE BUCKET
For Wheel Loaders
The Dymax Demolition Grapple Bucket is engineered for the toughest applications, featuring a rugged, heavy-duty design to tackle demanding demolition and material handling tasks. Built with T1 steel for maximum strength and durability, the bucket and grapple clamps are heavily reinforced to endure extreme conditions and severe workloads. This robust construction ensures the grapple bucket can effectively handle materials such as concrete, debris, and heavy scrap.
Commonly used in demolition projects, construction sites, and recycling facilities, the Dymax Demolition Grapple Bucket excels at breaking down, loading, and transporting heavy materials. Its powerful gripping capabilities make it ideal for sorting and processing concrete rubble, steel beams, and other debris, while the durable design provides reliable performance in environments where ordinary equipment falls short. The Dymax Demolition Grapple Bucket delivers the strength and reliability needed for the most challenging jobs.
SPECIFICATIONS
Model Code Description Width Weight |
|||
DX-BK-GLDM-4.50cyd-WL-70
Bucket-Grapple Demolition-4.50 cyd capacity-Wheel Loader-Class 70 STANDARD FEATURES: OEM replaceable bolt-on cutting edge, hydraulic cushion valve package, independent high strength grapple design built using T1 steel, exterior side wear plates, wedge floor design, bottom high tensile steel rear bolt-on wear pads, closed side plates with heavy duty corners and side cutters, 3.50 x 12.00 hydraulic cylinders. WIDTH RANGE: 115-120 inches WEIGHT: 6250 lbs |
|||
DX-BK-GLDM-5.00cyd-WL-80
Bucket-Grapple Demolition-5.00 cyd capacity-Wheel Loader-Class 80 STANDARD FEATURES: OEM replaceable bolt-on cutting edge, hydraulic cushion valve package, independent high strength grapple design built using T1 steel, exterior side wear plates, wedge floor design, bottom high tensile steel rear bolt-on wear pads, closed side plates with heavy duty corners and side cutters, 121 inch clamp opening, 3.50 x 12.00 hydraulic cylinders. WIDTH RANGE: 126-132 inches, subject to OEM edge pattern WEIGHT: 6650 lbs |
|||
DX-BK-GLDM-6.00cyd-WL-80
Bucket-Grapple Demolition-6.00 cyd capacity-Wheel Loader-Class 80 STANDARD FEATURES: OEM replaceable bolt-on cutting edge, hydraulic cushion valve package, independent high strength grapple design built using T1 steel, exterior side wear plates, wedge floor design, bottom high tensile steel rear bolt-on wear pads, closed side plates with heavy duty corners and side cutters, 121 inch clamp opening, 3.50 x 12.00 hydraulic cylinders. WIDTH RANGE: 126-132 inches, subject to OEM edge pattern WEIGHT: 7100 lbs |
|||
DX-BK-GLDM-7.00cyd-WL-90
Bucket-Grapple Demolition-7.00 cyd capacity-Wheel Loader-Class 90 STANDARD FEATURES: OEM replaceable bolt-on cutting edge, hydraulic cushion valve package, independent high strength grapple design built using T1 steel, exterior side wear plates, wedge floor design, bottom high tensile steel rear bolt-on wear pads, closed side plates with heavy duty corners and side cutters, 132 inch clamp opening, 4.00 x 16.00 hydraulic cylinders. WIDTH RANGE: 145-150 inches, subject to OEM edge pattern WEIGHT: 12,000 lbs |
|||
DX-BK-GLDM-8.00cyd-WL-90
Bucket-Grapple Demolition-8.00 cyd capacity-Wheel Loader-Class 90 STANDARD FEATURES: OEM replaceable bolt-on cutting edge, hydraulic cushion valve package, independent high strength grapple design built using T1 steel, exterior side wear plates, wedge floor design, bottom high tensile steel rear bolt-on wear pads, closed side plates with heavy duty corners and side cutters, 132 inch clamp opening, 4.00 x 16.00 hydraulic cylinders. WIDTH RANGE: 145-150 inches, subject to OEM edge pattern WEIGHT: 13,000 lbs |
Design and specifications are subject to change without notice. Please contact Dymax sales for custom solutions 1-800-530-5407.
HYDRAULIC REQUIREMENTS
Your machine will require 3rd function auxiliary lines.
CIRCUIT 1 – Clamp Operation Type – Two way Flow/Pressure – GPM (min/max) 15-25, PSI (max) 3,000 |
|||
NOT SUPPLIED: Does not include jumper hoses to machine lines or quick disconnects. |
