LARGE ROUND BALE

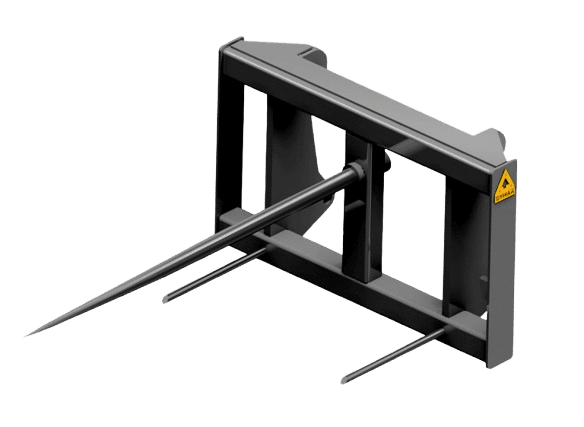

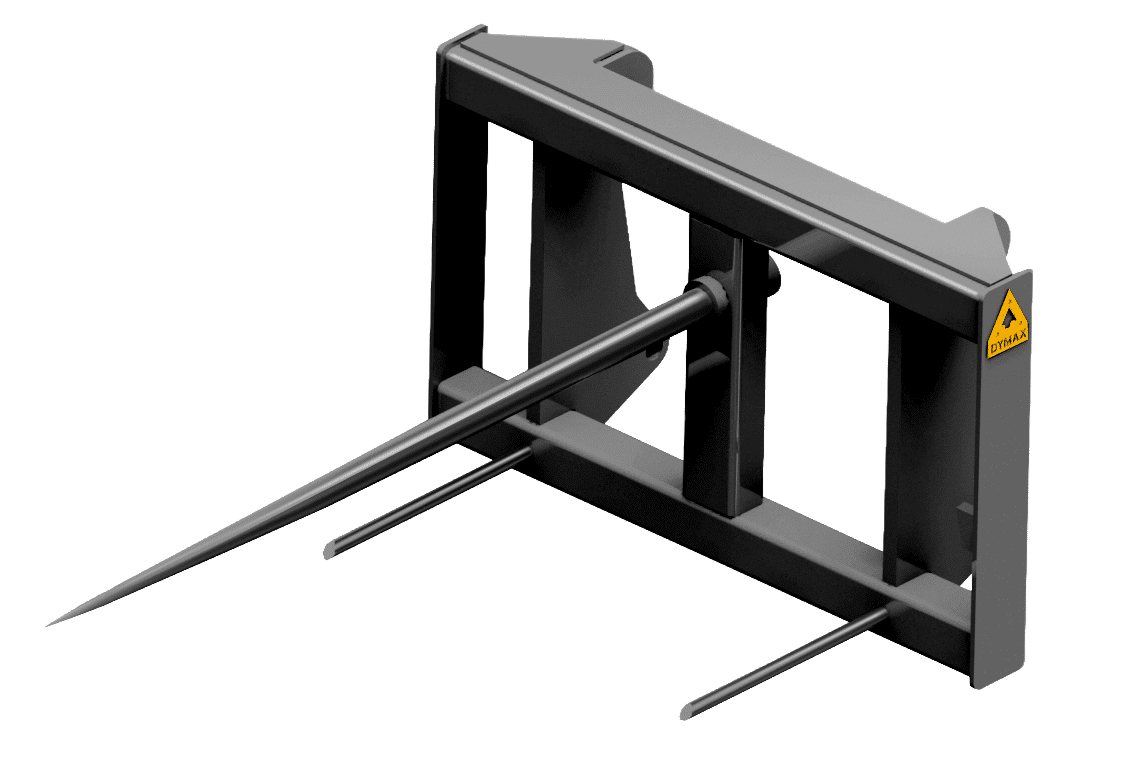

The Dymax Single Hay Bale Spear features a 44in long replaceable spear with two stabilizer spears. Designed for long life and durability, this spear is excellent for handling large round hay bales with small- to medium-sized wheel loaders.
ROUND BALES

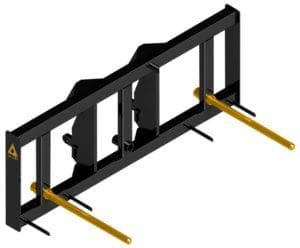

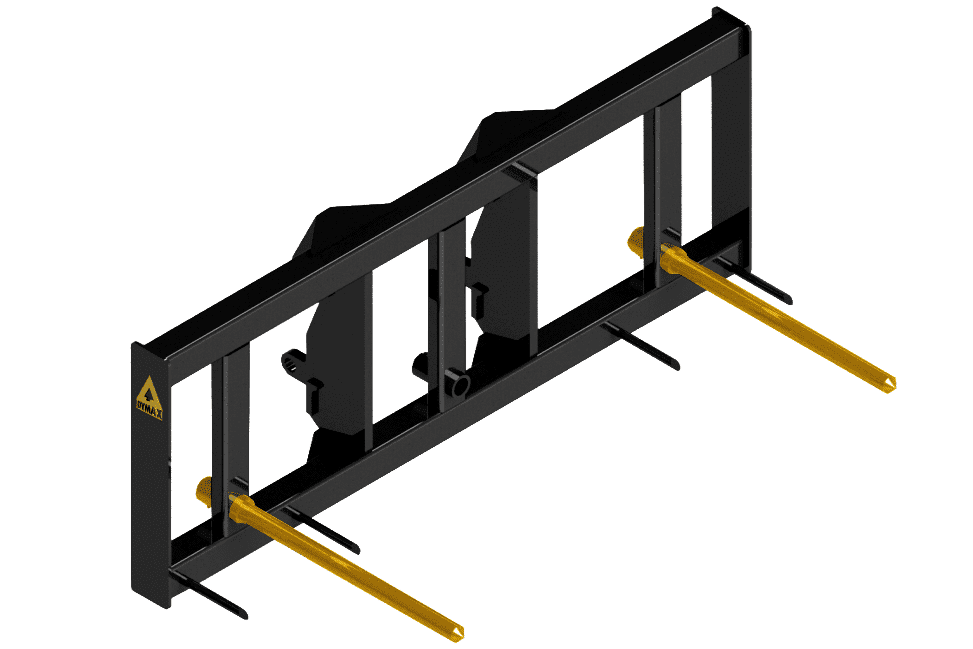

The Dymax Twin (Dual) Hay Bale Spear enables operators to efficiently handle large round hay bales side by side. Available for medium-sized wheel loaders. A 2.50″ diameter replaceable spear provides long service life, and each model comes equipped with a center spear mount. (Center spear not provided.)
ROUND OR RECTANGULAR BALES

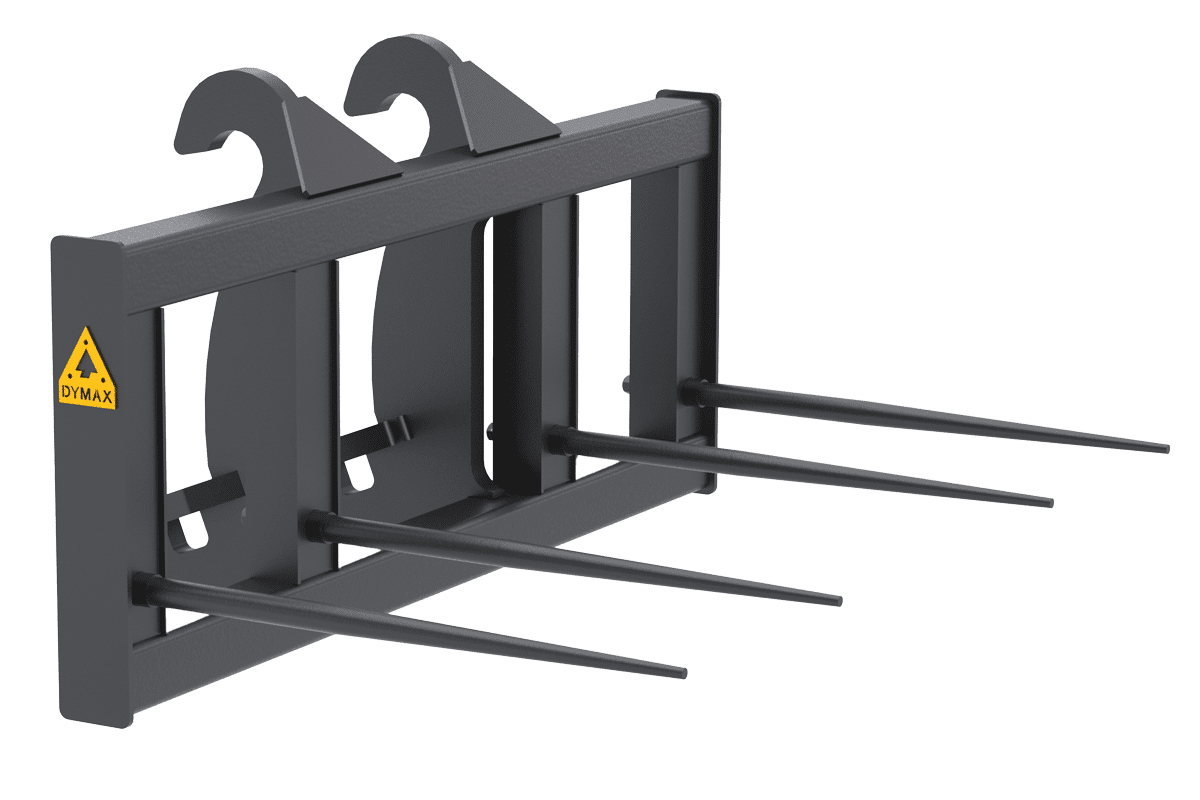

The Dymax 4 Bale Spear can handle 5 foot round bales side by side OR rectangular bales, 4x4x8. Available for medium-sized wheel loaders.
RECTANGULAR BALES

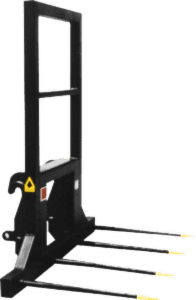

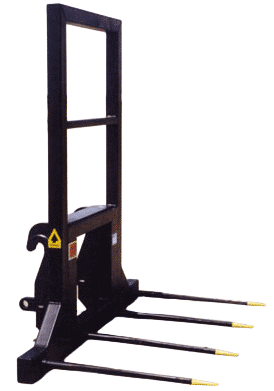

The Dymax Big Bale Handler for rectangular hay bales features (4x) four heavy duty replaceable spears with total load capacity of 5 tons. Each model features a tall backrest approximately 96 inches tall and can be equipped with quick coupler hooks to match your loader.

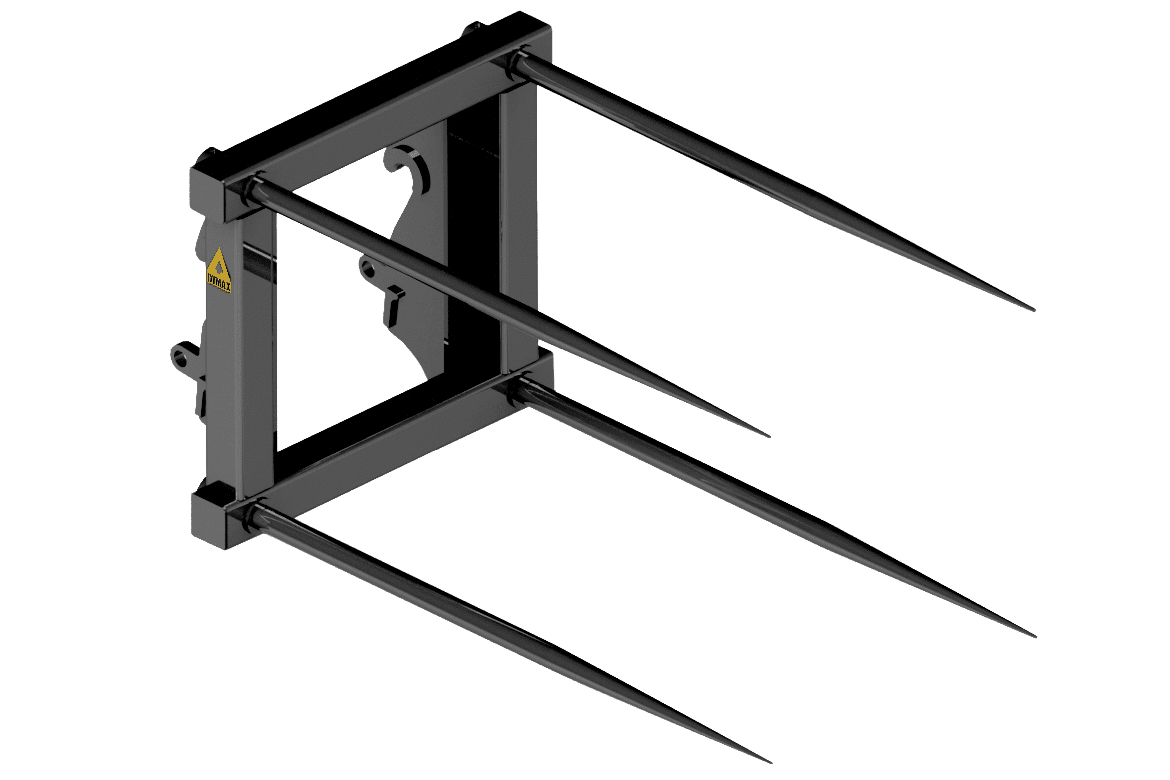

Dymax makes many spears for handling special materials. The Cotton Bale Spear features 4 replaceable high strength spears, making these spears excellent for handling cotton bales.
“I have been ordering from Dymax for over 16 years. I never once had a warranty claim or product issue. The bale handler attachment is second to none. This is a great company to work with and they are a great choice for all your attachment needs.”
– Larry Cummings, Foley Equipment
| Model Description Weight (lbs) |
| DX-BS-1SPR-48inx48in-BL-10
Bale Spear-Single Spear-48 inch tine length x 48 inch carriage-Backhoe Loader-Class 10 STANDARD FEATURES: – 44 inch, 2,900 lb capacity spear – (2x) stabilizer spears – For ROUND Bales WEIGHT: 470 lbs |
| DX-BS-1SPR-44inx48in-WL-40
Bale Spear-Single Spear-44in spear length x 48 inch carriage-Wheel Loader-Class 40 STANDARD FEATURES: – 44 inch, 2,900 lb capacity spear – (2x) stabilizer spears – For ROUND Bales WEIGHT: 470 lbs |
| DX-BS-1SPR-44inx48in-WL-50
Bale Spear-Single Spear-44in spear length x 48 inch carriage-Wheel Loader-Class 50 STANDARD FEATURES: – 44 inch, 2,900 lb capacity spear – (2x) stabilizer spears – For ROUND Bales WEIGHT: 470 lbs |
| DX-BS-1SPR-44inx48in-WL-60
Bale Spear-Single Spear-44in spear length x 48 inch carriage-Wheel Loader-Class 60 STANDARD FEATURES: – 44 inch, 2,900 lb capacity spear – (2x) stabilizer spears – For ROUND Bales WEIGHT: 550 lbs |
Design and specifications are subject to change without notice.
| Model Description Weight (lbs) |
| DX-BS-2SPR-44inx106in-WL-40
Bale Spear-Double Spear-44in spear length x 106in carriage width-Wheel Loader-Class 40 STANDARD FEATURES: – 108 in total carriage width – Spear Spread – 80 inches – (4x) stabilizer spears – For ROUND Bales – Handles single or twin round bales side by side. WEIGHT: 1300 lbs |
Design and specifications are subject to change without notice.
| Model Description Weight (lbs) |
| DX-BS-4SPR-44inx84in-WL-40
Bale Spear-Four Spear-44 inch spear length x 84 inch carriage width-Wheel Loader-Class 40 STANDARD FEATURES: – 84 in total carriage width – (4x) spear assembly, 2900lb capacity each – No stabilizer spears – For Round Bales side by side handling 5ft size OR Rectangular 4x4x8 WEIGHT: 520 lbs |
Design and specifications are subject to change without notice.
| Model Description Weight (lbs) |
| DX-BH-4SPR-96×84-WL-40
Big Bale Handler-Four Spear-96 inches tall x 84 inches wide carriage-Wheel Loader-Class 40 STANDARD FEATURES: – Quick coupler hooks – (4x) four heavy-duty replaceable spears – 2900 lb capacity each – For RECTANGULAR Bales 4x4x8 or 3x4x8 size WEIGHT: 1130 lbs |
| DX-BH-4SPR-96×84-WL-50
Big Bale Handler-Four Spear-96 inches tall x 84 inches wide carriage-Wheel Loader-Class 50 STANDARD FEATURES: – Quick coupler hooks – (4x) four heavy-duty replaceable spears – 2900 lb capacity each – For RECTANGULAR Bales 4x4x8 or 3x4x8 size WEIGHT: 800 lbs |
Design and specifications are subject to change without notice.
| Model Description Weight (lbs) |
| DX-BSCT-4SPR-54×49-WL-50
Bale Spear Cotton-Four Spear-54 inches wide x 49 inches tall-Wheel Loader-Class 50 Fits most wheel loader class 20-50 STANDARD FEATURES: – (4x) 3.00 in diameter x 84.00 long spears – 54.00 inch carriage width – 49.00 inch carriage height – Includes coupler hooks WEIGHT: 1520 lbs |
Design and specifications are subject to change without notice.
