Trash Grapple

For hydraulic excavators

Grab, sort and load more trash! The Dymax Trash Grapple attachment features a gearless rotator, single pivot and 2 over 3 intersecting tine construction. The tines are made of solid steel with replaceable tips. (Esco or Cat teeth)

STANDARD FEATURES:

  • Solid T1 steel tines with replaceable tips
  • 3.5 x 12.0 hydraulic cylinders
  • Gearless rotation system
  • 48.0 in opening between tines

OPTIONS:

  • 12/24v electro valve kit with wire, switch and fuse kit
Model Code
Description
Weight
DX-GL-TRSH-360-HX-13T

Grapple-Trash Refuse-360 degrees rotation-Hydraulic Excavator-13 ton

STANDARD FEATURES: solid T1 steel tines with replaceable tips, 3.5 x 12.0 hydraulic cylinders, gearless rotation system DY137052, 48.0 in opening between tines.

Weight: 1880 lbs
Design and specifications are subject to change without notice. Please contact Dymax sales for custom solutions: 1-800-530-5407.
Your machine requires (1x) hydraulic circuit for operating this attachment. The grapple is provided with an electro-hydraulic diverter valve mounted to the grapple. Installation of 2-wire cable is required.

CIRCUIT 1 – Grapple Open and Close
GPM Flow Rate – 10-20 GPM
PSI Pressure – 3,000 max psi

CIRCUIT 2 – Rotator
GPM Flow Rate: 8-10 GPM
PSI Pressure:  3,000 max psi

If your machine does not have a 2nd circuit for powering the rotation system please contact Dymax. We can provide an electro-hydraulic valve kit. Kits are priced separately.
NOT SUPPLIED: Jumper hose assembly to and from machine lines.
BROCHURE
CONTACT US

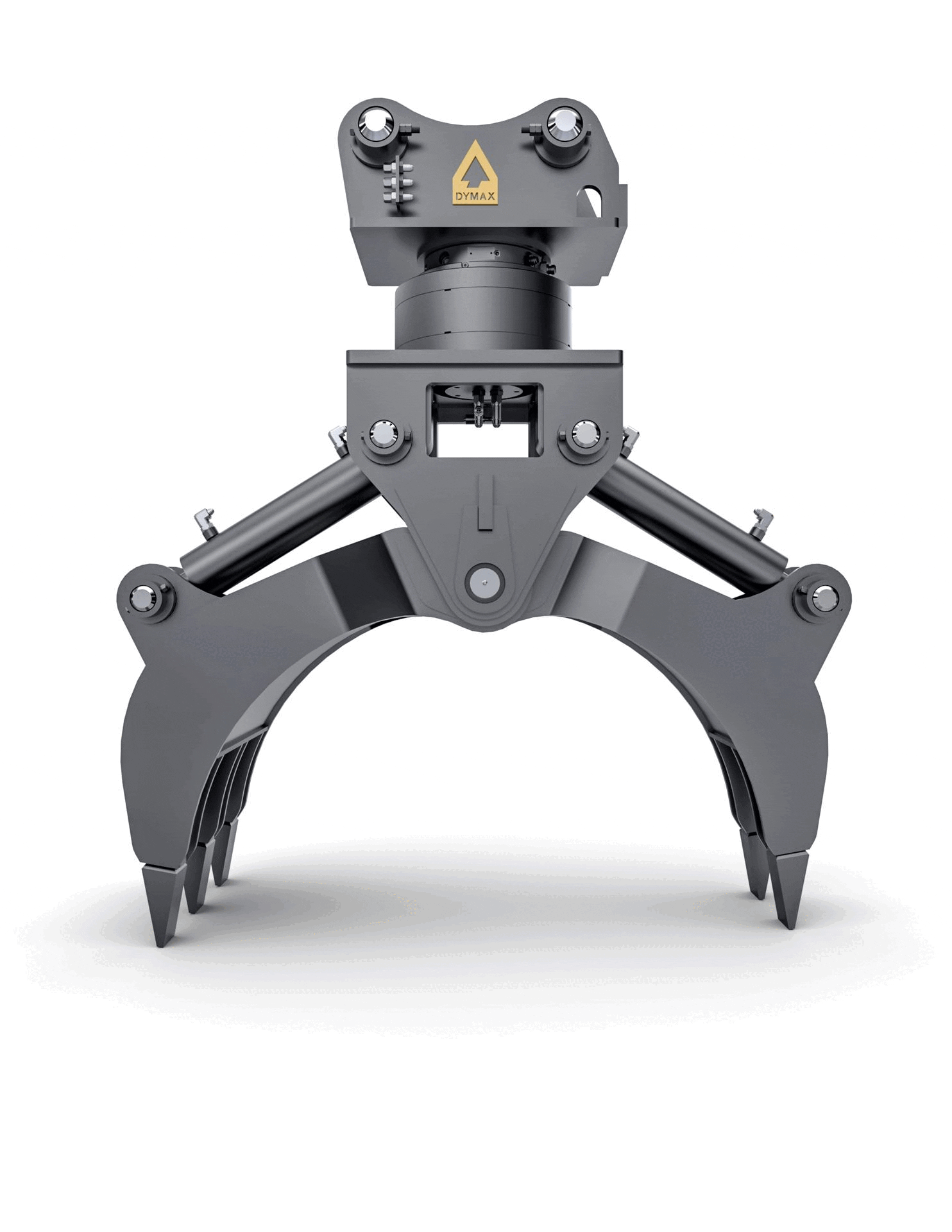

Rotating image that shows the Dymax Trash Grapple Excavator Attachment from every angle.
