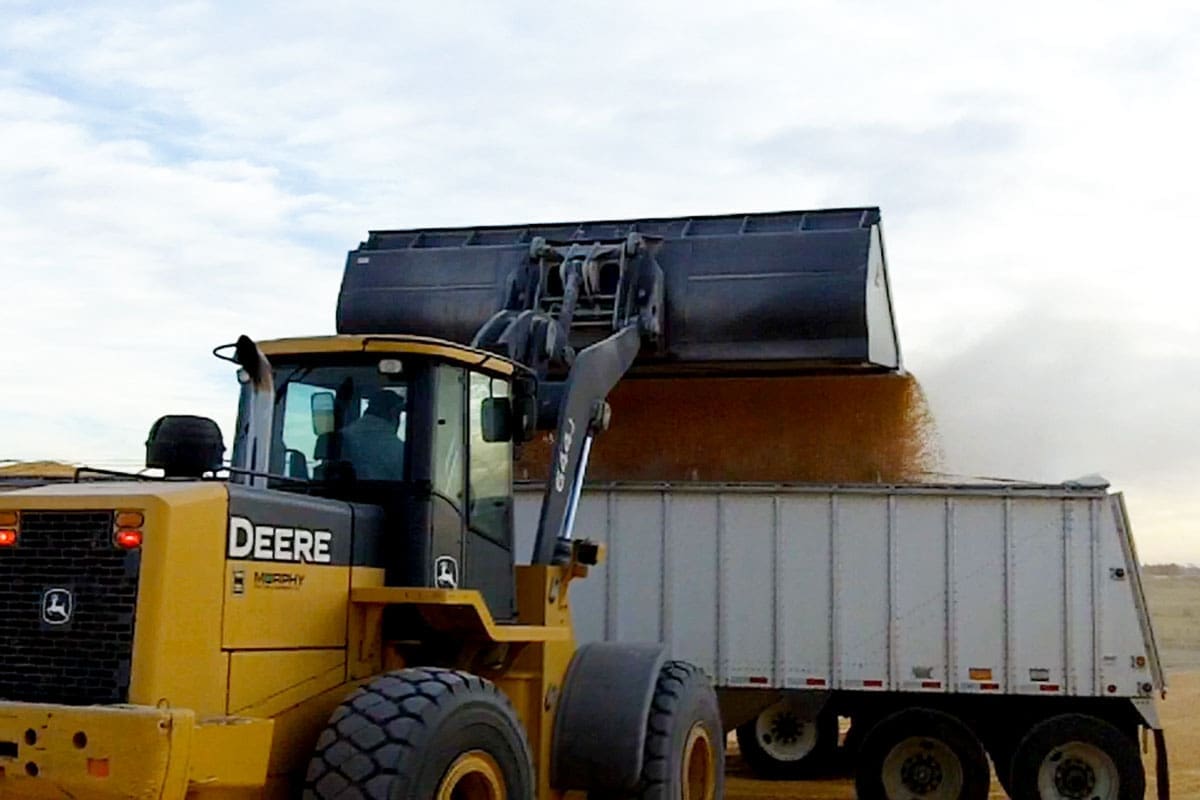

Dymax Extra Wide Corn and Grain Loading Bucket

for Wheel Loaders

The Extra Wide Corn and Grain Bucket is tailored for customers who need efficient, even loading of semi-trailers with lighter materials. Engineered as a light material bucket, this model offers a wider profile, specifically designed to distribute corn and grain more evenly, reducing the need for additional passes. It provides a valuable alternative to traditional bucket models, especially for operators prioritizing load balance and efficiency in bulk material handling.

KEY FEATURES
  • Ideal for handling corn and grain up to 1,200 lbs per cubic yard.
  • Extra-wide design with high capacities and increased dump height for loading semi trailers.
  • Flat floor design. Some models with higher capacities feature floor ribs for durability.
  • Includes replaceable bolt-on cutting edges.
OPTIONS
  • Pin-on lugging
  • Quick coupler hooks
  • Rear bolt-on wear pads
  • Special design solutions
Model Code
Description
Weight
DX-BK-LMCR-6.50cyd-WL-60

Bucket-Light Material Corn & Grain (Extra Wide)-6.50 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 60

STANDARD FEATURES:

  • Includes replaceable bolt-on cutting edges
  • Bottom T1 wear plates with rear wear pads
  • High strength radial-convex side cutters
  • Flat floor with center ribs for support

Width: 150.0 inches, Dymax Edges 1×10

Weight: 4000 lbs
DX-BK-LMCR-7.50cyd-WL-60

Bucket-Light Material Corn & Grain (Extra Wide)-7.50 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 60

STANDARD FEATURES:

  • Includes replaceable bolt-on cutting edges
  • Bottom T1 wear plates with rear wear pads
  • High strength straight side cutters
  • Flat floor with center ribs

Width: 150.0 inches, Dymax Edges 1×10

Weight: 5050 lbs
DX-BK-LMCR-9.00cyd-WL-60

Bucket-Light Material Corn & Grain (Extra Wide)-9.00 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 60

STANDARD FEATURES:

  • Includes replaceable bolt-on cutting edges
  • Bottom T1 wear plates with rear wear pads
  • High strength straight side cutters
  • Flat floor with center ribs

Width: 190.0 inches, Cat Edges Modified

Weight: 6100 lbs
DX-BK-LMCR-8.00cyd-WL-70

Bucket-Light Material Corn & Grain (Extra Wide)-8.00 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 70

STANDARD FEATURES:

  • Includes replaceable bolt-on cutting edges
  • Bottom T1 wear plates with rear wear pads
  • High strength straight side cutters
  • Flat floor with center ribs

Width: 190.0 inches, Cat Edges Modified

Weight: 5850 lbs
DX-BK-LMCR-10.88cyd-WL-70

Bucket-Light Material Corn & Grain (Extra Wide)-10.88 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 70

STANDARD FEATURES:

  • Includes replaceable bolt-on cutting edges
  • Bottom T1 wear plates with rear wear pads
  • High strength straight side cutters
  • Flat floor with center ribs

Width: 181.0 inches, Dymax Edges 1×10

Weight: 6300 lbs
DX-BK-LMCR-10.00cyd-WL-80

Bucket-Light Material Corn & Grain (Extra Wide)-10.00 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 80

STANDARD FEATURES:

  • Includes replaceable bolt-on cutting edges
  • Bottom T1 wear plates with rear wear pads
  • High strength straight side cutters
  • Flat floor with center ribs

Width: 183.0 inches, Deere Edges Modified

Weight: 6700 lbs
DX-BK-LMCR-12.00cyd-WL-90

Bucket-Light Material Corn & Grain (Extra Wide)-12.00 cubic yard capacity (SAE heap rating)-Wheel Loader-Class 90

STANDARD FEATURES:

  • Includes replaceable bolt-on cutting edges
  • Bottom T1 wear plates with rear wear pads
  • High strength straight side cutters
  • Flat floor with center ribs

Width: 160.0 inches, Deere Edges Modified

Weight: 7780 lbs
Design and specifications are subject to change without notice. Please contact Dymax sales for custom solutions: 1-800-530-5407
